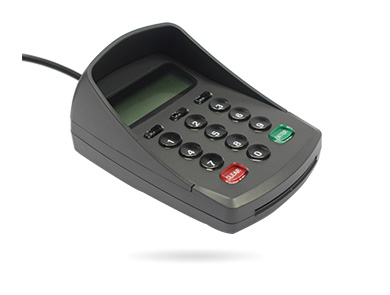

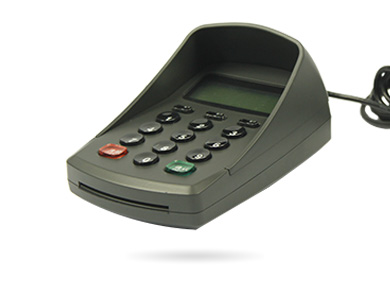

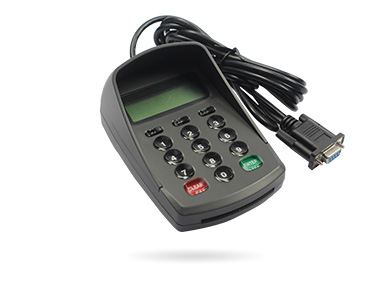

0755-29641875Bank PIN Keypad
The product supports DES/3DES encryption module (optional), using 3DES and ANSIX9.8 algorithm to encrypt the communication data with the host computer. It is safe and reliable, and has hardware protection, disassembly and self destruction function, and supports the addition of voice module to provide friendly human-computer interface; the interface supports TTL, RS232, connecting different types of terminals and P C, to meet the needs of different business systems.
Small size and novel appearance, it is ideal for any environment. Two lines of liquid crystal display, simple and easy to operate friendly interface, let you in any environment are clear and easy to read, to the maximum reduction of input errors, speed up the transaction processing.
It has anti peep design to ensure the safety and reliability of transactions and data. Excellent security performance, powerful functions, and multiple connections, easy to connect with other POS terminals, perfect simplification of your electronic payment system. With desktop POS, value-added applications can be developed to meet the needs of various business environments.
main features
Conductive silica gel with good handle
Double color injection key hat, the character is clear, never grind out
Optional functions: DES encryption, LED instructions (red light), dot matrix LCD (122 * 32), voice prompts.
Optional interface: serial port, PS/2, USB
Support for the name of each bank
Support China UnionPay POS system, 64 bit DES encryption
It has 16 pairs of main keys and work passwords.
The key can be transformed by downloading the host.
The work key is encrypted by the corresponding master key;
After the work key is activated, the password is encrypted with the work password.
Mechanical properties
Key life: more than 1000000 times
Press pressure: 2 ~ 3N (cattle)
Key stroke: no less than 1.2mm
Keypad materials: injection molded glass keys
Key surface character: transparent printing
Shell material: high quality engineering plastics
Shape size: L134*W83*H66mm
Product weight: 0.5Kg
